Horizontal Directional Drilling Rig
Horizontal Directional Drilling Rig

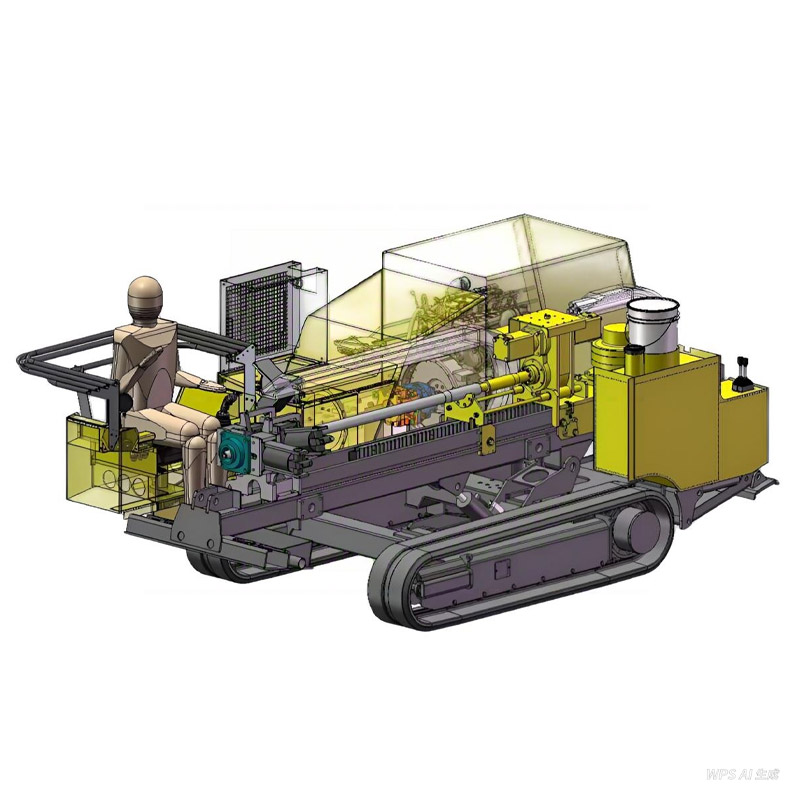

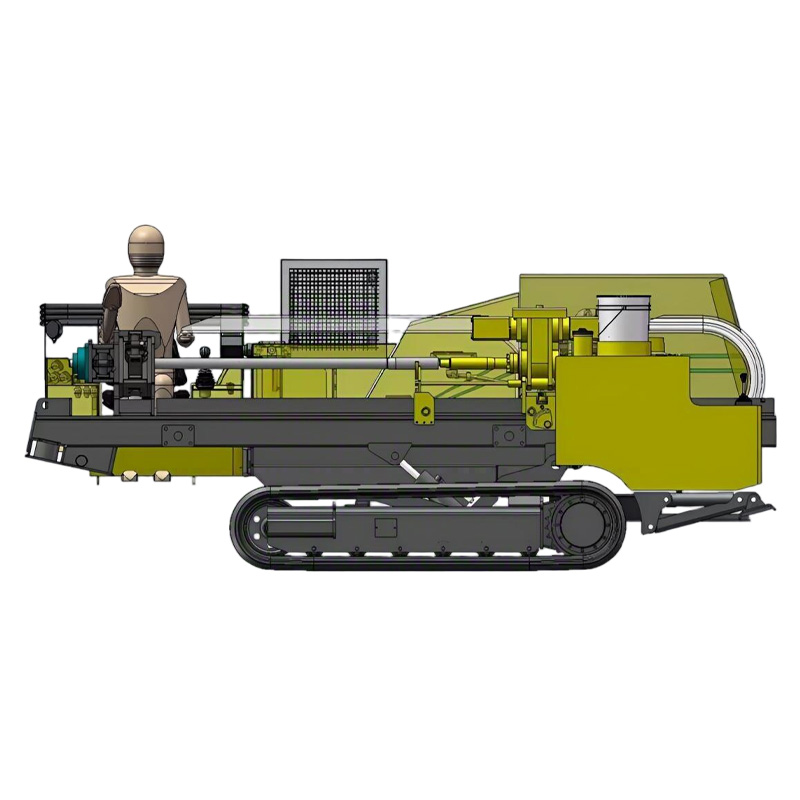

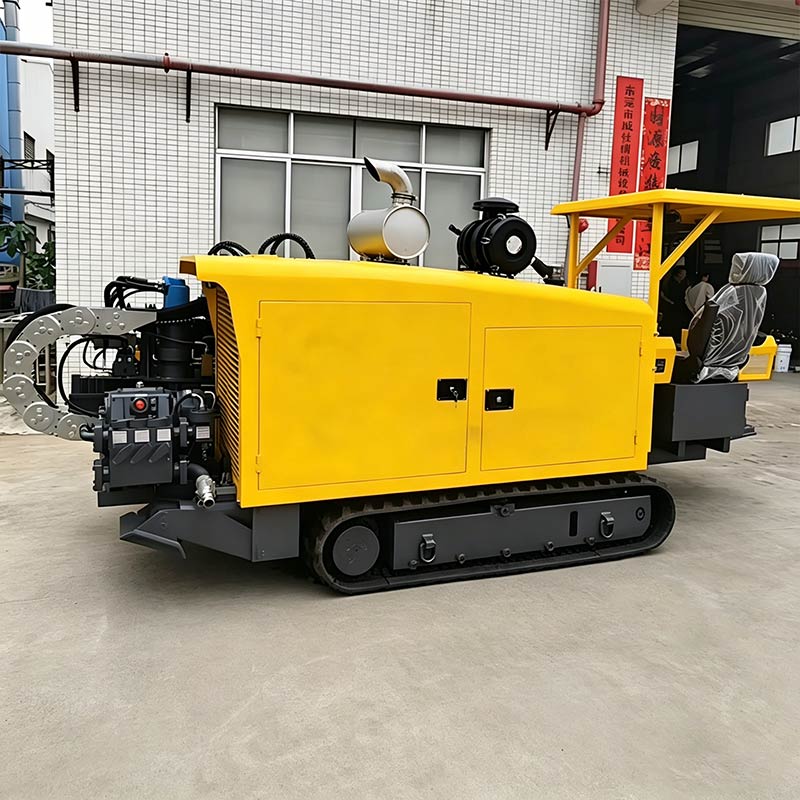

Horizontal Directional Drilling Rig Overview
The Horizontal Directional Drilling Rig is a high-performance trenchless construction solution designed for precise underground pipeline installation. It integrates advanced hydraulic systems, high-torque power units, and intelligent guidance technology to deliver stable, efficient, and accurate drilling performance. By eliminating the need for large-scale excavation, it significantly reduces surface disruption, construction time, and environmental impact.
Key Features of Horizontal Directional Drilling Rig
This Horizontal Directional Drilling Rig is engineered for demanding infrastructure projects requiring reliability and precision:
- High-torque output for efficient drilling in complex geological conditions
- Advanced hydraulic system ensures stable power transmission and control
- Precision guidance system improves drilling accuracy and reduces deviation risk
- Crawler-type travel system enhances mobility and adaptability on rugged terrain
- Compact structure for convenient transport and on-site operation
Application Scenarios
The Horizontal Directional Drilling Rig is widely used in multiple underground engineering fields, including:
- Urban infrastructure pipeline installation
- Oil and gas pipeline crossing projects
- Optical fiber and communication cable laying
- Water supply and drainage pipeline construction
- River crossings and environmentally sensitive zones
- Congested urban areas where excavation is restricted
Technical Specifications
| Max Thrust/Pull Force | 180 kN |
| Max Rotation Torque | 8,000 N·m |
| Drilling Rod Diameter | 73 mm |
| Max Drilling Depth | 300 m |
| Engine Power | 75 kW |
| Travel System | Crawler type |
| Machine Dimensions | 4,200 mm × 2,100 mm × 2,200 mm |
| Machine Weight | 6,500 kg |
Advantages of Horizontal Directional Drilling Rig
Compared with traditional open-cut methods, this equipment offers significant operational and environmental benefits:
- Minimizes surface disruption and restoration costs
- Reduces construction time and labor intensity
- Improves safety in complex urban environments
- Supports long-distance and high-precision underground installation
- Enhances adaptability across diverse soil and terrain conditions
